# Functions and Events: Function Blocks

The C Code Interface provides functions for interacting with Vehicle Spy [Function Blocks](/vspy-3-documentation/3.9.16/vehicle-spy-main-menus/main-menu-scripting-and-automation/function-blocks.md).  Function blocks can capture message data to a file, replay messages or execute a script. Therefore your C code has high level control over this powerful part of Vehicle Spy. You can start, stop, trigger or save data related to function blocks directly from C.\
\
All function block related functions begin with the prefix "FB\_". The function then contains the function block name and finishes with the API name. For example, if a function block was named "Test", the function to start it would be "FB\_Test\_Start()". See the table and picture below for more details.

**Table 1: Function Block APIs Available**

| API            | Description                                                     |
| -------------- | --------------------------------------------------------------- |
| IsRunning()    | Returns 1 if the function block is running.                     |
| IsTriggered()  | Returns 1 if the function block is triggered.                   |
| NumCollected() | Returns the number of messages collected by the function block. |
| Save()         | Saves the function block data.                                  |
| Start()        | Starts the function block.                                      |
| Stop()         | Stops the function block.                                       |
| Trigger()      | Triggers the function block.                                    |

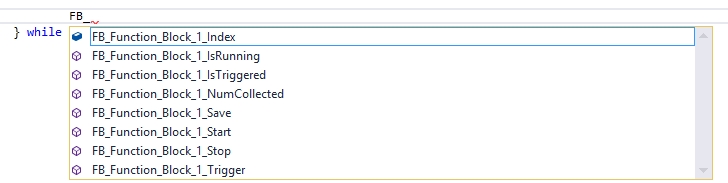

![Figure 1: The C code project has full control of Vehicle Spy's function blocks - just type "FB\_".](https://content.gitbook.com/content/l4AHCa3zNeJQNFBrgCqy/blobs/LFeCA7ZW26rZwyzy1rrg/fblock_control.gif)


---
