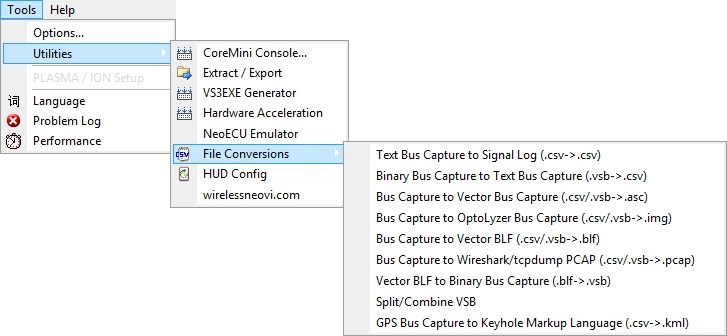

Vehicle Spy contains a few tools for converting file formats. To use them, select Tools -> Utilities -> File Conversions then select the conversion you want to perform (Figure 1). A window will pop up asking for a Vehicle Spy buffer file (CSV or VSB). Find the file and click Open. Another window will open for saving the converted file. Give the file a name and click Save.
Note that none of these file converters will change the original file. All of these converters work with a copy of the original file and leave the original untouched.
Table 1: File Conversion Selections
Though it is not on the File Conversions menu, the CSV2KML converter takes GPS position information from a Vehicle Spy log file and converts it into a KML file for Google Earth. The various file converters are necessary because Vehicle Spy can save buffer files in three formats. Each file format has these unique qualities that are useful in different situations:
always has message data
can include OR not include decoded signal data as set by the user (database might be required)
readable by many applications
larger size than Signal Log or VSB files
never has message data
always has decoded signal data (database not required)
readable by many applications
basic table of signals vs time
always has message data
never has decoded signal data (database required)
readable only by Vehicle Spy
smaller size than CSV files
| File Conversion Selection | Description |
|---|---|
Text Bus Capture to Signal Log (.csv->.csv)
Converts a Vehicle Spy message+signal buffer file into a signal-only log file. For example, use Messages view "Save" (with Save Signals enabled!) to capture a message+signal CSV file. Use this conversion utility on that file and it becomes a CSV log file with only signal values in it, just like Logging view would generate.
Binary Bus Capture to Text Bus Capture (.vsb->.csv)
Converts a Vehicle Spy binary buffer file into a Vehicle Spy CSV buffer file. (no signals) For example, this can convert a VSB file captured from standalone logging into a CSV file for use in other programs.
Bus Capture to Vector Bus Capture (.csv/.vsb->.asc)
Converts a Vehicle Spy message buffer file into a Vector? log file.
Bus Capture to OptoLyzer Bus Capture (.csv/.vsb->.img)
Converts a Vehicle Spy message buffer file into an OptoLyzer? bus capture (img) file.
Bus Capture to Vector BLF Bus Capture (.csv/.vsb->.blf)
Converts a Vehicle Spy message buffer file into a Vector? bus capture (blf) file.
