8x CAN FD, 4x LIN, Ethernet:DoIP/XCP

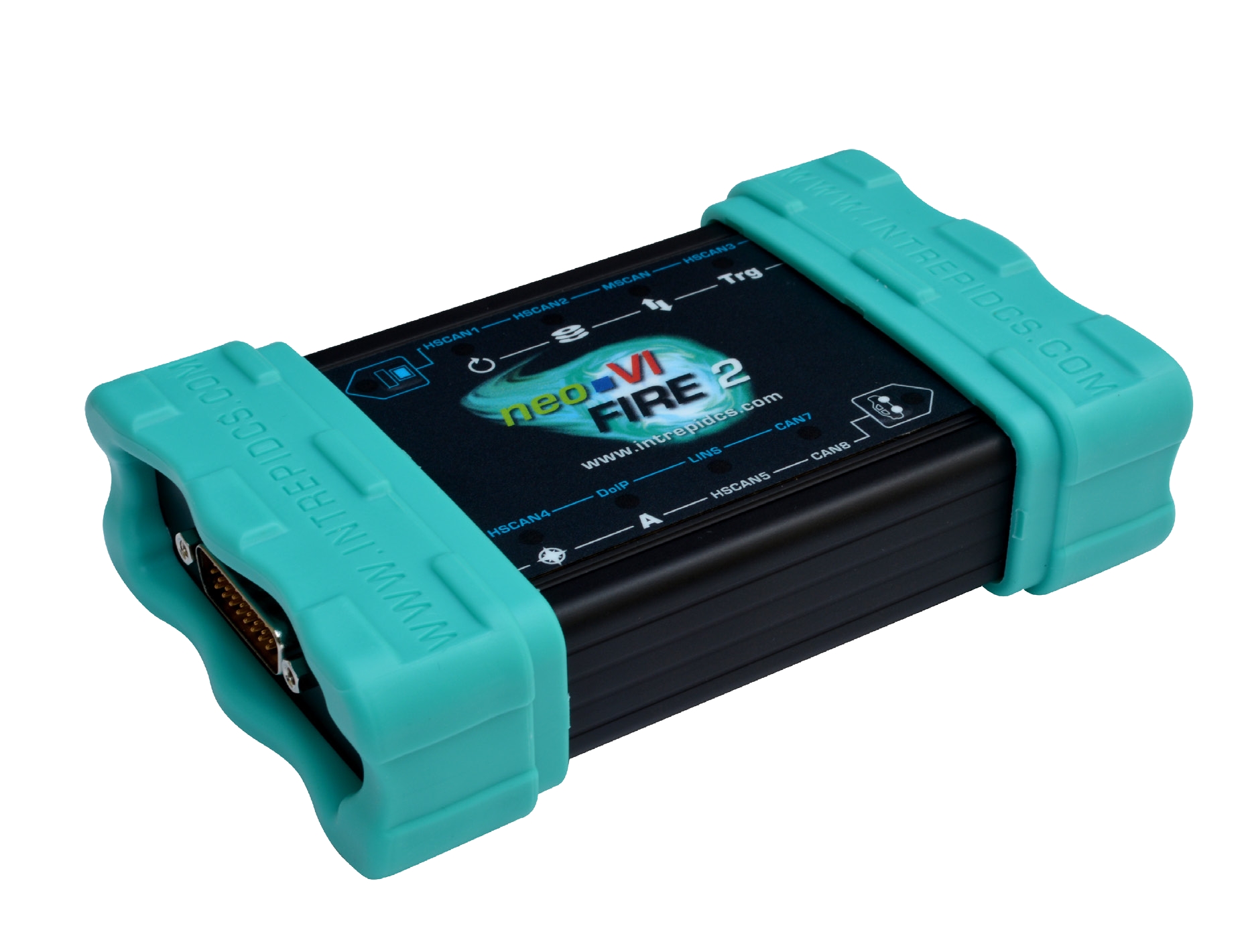

Modern vehicle architectures are expanding to include Ethernet and CAN FD in addition to existing CAN and LIN networks. The neoVI FIRE 2 provides Ethernet, eight channels of CAN (including CAN FD) and four channels of LIN in one tool. All channels run simultaneously and are time-stamped in hardware. A fully-isolated high-speed USB interface allows messages to be sent and received without risk of damage to the PC.
neoVI FIRE 2 User Guide - https://cdn.intrepidcs.net/guides/neoVI-Fire2/
Vehicle Network Interface plus Data Logging System with CAN FD and Ethernet
16x CAN FD, 8x LIN, 3x Ethernet Interfaces

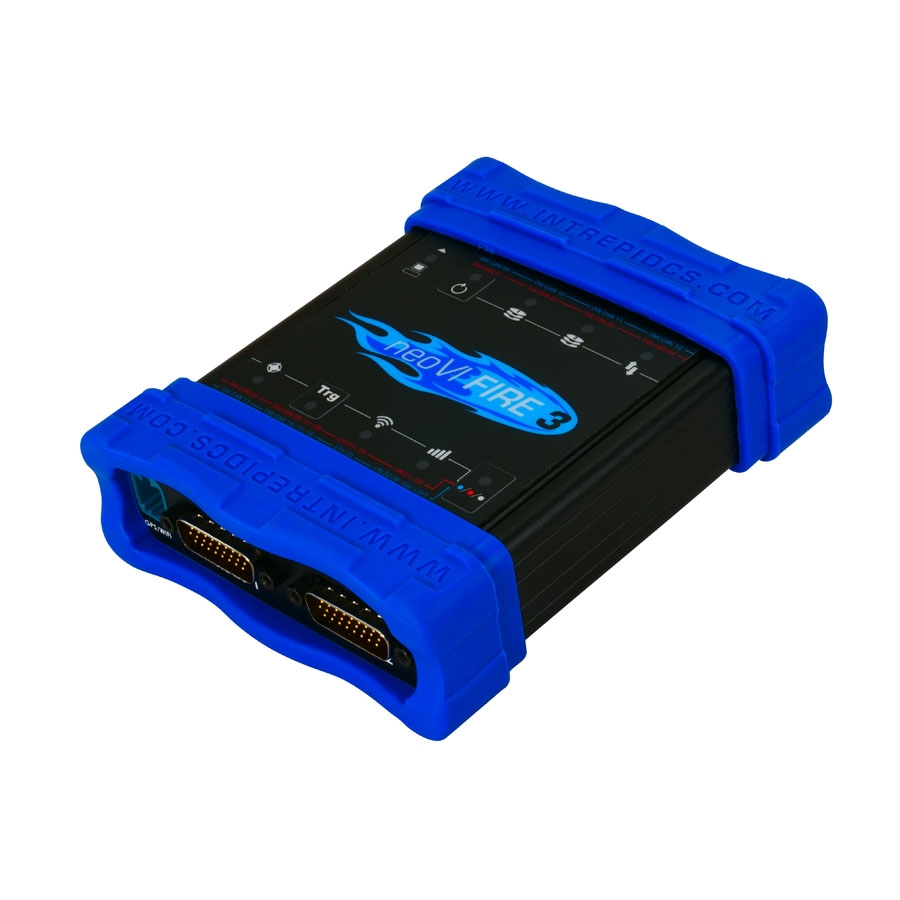

The neoVI FIRE 3 is the most advanced multi-protocol vehicle network interface and data logger available. The neoVI FIRE 3 has 16x CAN FD networks, up to 8x LIN networks, 2x 1 Gb 10/100/1000BASE-T, 1x 10/100BASE-Tx.
All networks run simultaneously and are hardware time-stamped. A fully isolated high-speed ethernet interface allows messages to be sent and received without risk of damage to the networks or your computer.
neoVI FIRE 3 User Guide - https://cdn.intrepidcs.net/guides/neoVI-documentation
