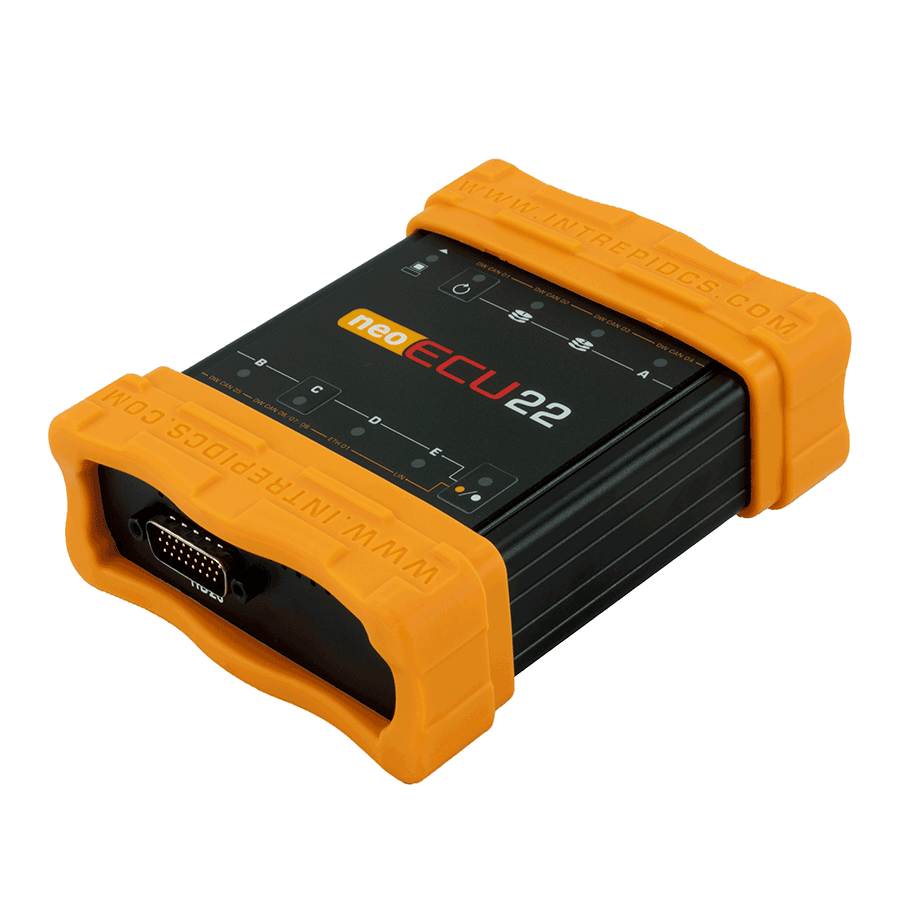

The neoECU 22 is a rapid prototyping tool for CAN, CAN FD, LIN and Ethernet. The neoECU 22 can be scripted to gateway, control and measure automotive network traffic and PDUs in minutes. Logic can be defined in Vehicle Spy’s Function Block scripts, or embedded C code, allowing you to keep your project moving.
Create gateways in minutes with Vehicle Spy’s Enterprise’s Gateway Builder Feature. Gateway between CAN FD, CAN, LIN, and Ethernet
Integrate into benches to replace or in advance of receiving a prototype ECU
Simulate a real ECU environment with dozens of low cost nodes
Try out new algorithms early in design
8x DW CAN / CAN FD channels
8x software enabled CAN terminations
2x LIN channels
1x DoIP Activation line
2x Gigabit Ethernet (1000BASE-T) for use with DoIP, XCPoE and more
Intrepid Security Module provides hardware cybersecurity support and embedded C Code capability
10x Programmable tri-color LEDs
2x full-size SD cards for scripting and playback
Membrane LEDs to show link, error, and activity status
Vehicle battery level wakeup
User Guide for neoECU 22 - https://cdn.intrepidcs.net/guides/neoVI-documentation
