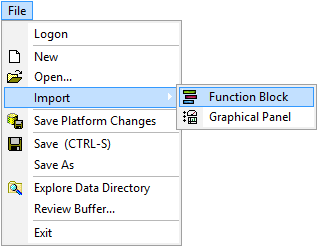

The Vehicle Spy File main menu contains tasks for opening and saving files (Figure 1).
Refer to Table 1 for a brief description of each File selection.
Table 1: Vehicle Spy File Menu
File Menu Selection | Description |
---|---|
Opens the Logon view.
Creates a blank Vehicle Spy setup.
Opens an existing Vehicle Spy Setup.
Loads an exported Function Block (*.vs3fb) into the current setup.
Loads an exported Graphical Panel (*.vs3gp) into the current setup.
Save Platform Changes
Saves current Platform including the diagnostic database.
Saves current setup to the currently open file name.
Saves the current setup to a new file (.vs3 or .vs3zip).
Opens the data directory of the logged on user.
Opens a captured buffer in the Messages view.
Exit
Closes Vehicle Spy.
