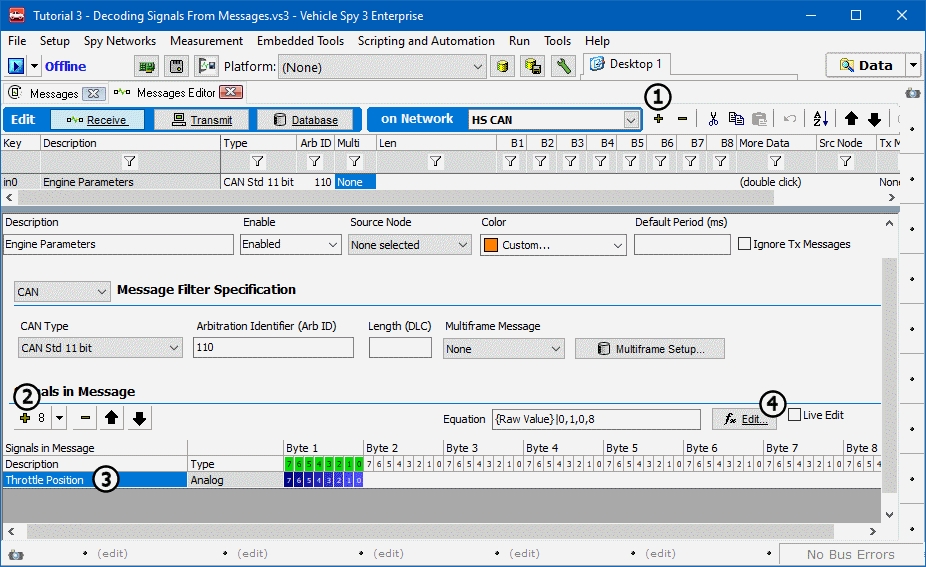

Open up the Messages Editor panel in the main workspace using the custom tab set or by selecting Spy Networks> Messages Editor. Define a new Receive message for HS CAN by selecting HS CAN from the on Network pull down and clicking the + button (Figure 1:). Using the Setup dialog, enter the following specifications:
Description: Engine Parameters Type: Std 11 bit Arbitration ID: 110 Choose Custom Color
The lower portion of the Setup dialog contains a Signals in Message area. Click the + button in this area to add a blank 8 bit signal specification (Figure 1:).
Give the signal the description Throttle Position. This is done by double clicking the default description (Figure 1:) and typing in a new description.
To tell Vehicle spy how to decode this signal, the fx Edit button (Figure 1:) can be clicked to bring up the decoding options.
