The Vehicle Spy Measurement menu (Figure 1) contains many features to facilitate the presentation and analysis of vehicle data.

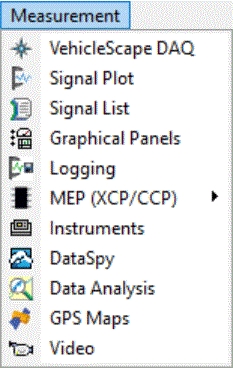

Figure 1: The Vehicle Spy Measurement menu.
Table 1 contains a brief description of each of the items in the menu, with links to pages containing additional information.
Table 1: Vehicle Spy Measurement Menu Items
Menu Item | Description |
---|---|
Opens the VehicleScape DAQ feature to enable acquiring and logging various types of vehicle data. | |
Graphically displays signal data. | |
Displays a list of signal names and values. | |
Allows you to define and use a set of custom user interfaces within Vehicle Spy. Note that the Floating Panels menu item appears when at least one graphical panel tool has been defined. | |
Configures the logging of signal values based on specific parameters. | |
A submenu allowing access to Memory Edit Protocol (MEP) features, including measurement and calibration using XCP and CCP. | |
Instrument control in Vehicle Spy is a feature where rack-and-stack type instruments can be controlled through function blocks. | |
Opens the Data Analysis feature, which provides powerful options for plotting, analyzing and showing statistics for captured buffers and logs. | |
Allows GPS location information in vehicle data to be graphically displayed on maps. | |
Permits video data to be reviewed. |
