Capture Type Function Block: Data Tab

Overview

The Data Tab of a Capture Type Function Block does not contain settings, but rather is a display area where you can observe the messages that are being captured as the function block is running. If a filter has been defined, then only the messages passing the filter will be shown.

An example of the Data Tab as it might appear while running a capture block is shown in Figure 1. Notice that highlighting of changing byte data is shown, as in the Messages View display.

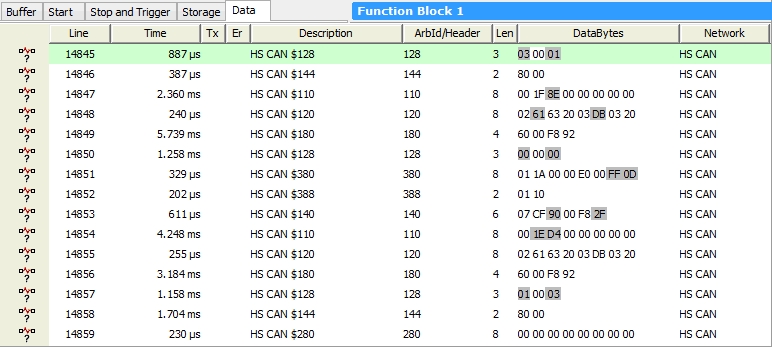

Figure 1: Capture Block Data Tab showing captured messages.
