This command allows data to be logged to a file or device from within a function block script.

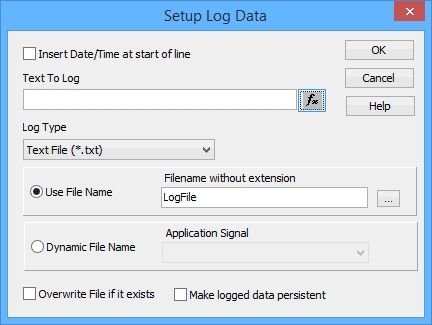

Double-click in the Value field to launch the dialog box where data logging settings can be entered (Figure 1).
When checked, prepends the logged data with a timestamp.
The text to be logged, which is specified as an expression using the Expression Builder. Examples include a static text string entered as an expression (with Evaluate as text checked in the Expression Builder) or a string from a signal.
The type of log to create:
Text File: A plain text file.
HTML File: A file encoded using standard HTML.
neoECU RS232 Port
neoECU LCD
neoECU Network
Host PC
neoVI MOTE Screen
Choose one of these radio buttons to determine where the file's name comes from:
Use File Name: Enter a static filename in the adjacent box.
Dynamic File Name: Select an application signal in the setup that contains the name of the file. This allows you to change the name of the file on the fly by using Set Value or other commands to adjust the name stored in that application signal.
When selected, existing files are overwritten rather than creating new ones, to prevent filling the data directory with many log files.
When selected, written data persists in storage.
