Vehicle Spy Required Hardware PC System Requirements
PC System Requirements
Minimum Requirements
32-bit or 64-bit Windows (Vista* / 7 / 8.X** / 10 / 11)
At least 4 GB system RAM
Intel or AMD 1.8 Ghz (or better)
XGA (1366x768) screen resolution or better
Current neoVI, ValueCAN, or RAD Devices. i.e neoVI vehicle network adapters (FIRE 2, ION, RED2, FIRE3, etc), ValueCAN devices (ValueCAN 4 family), or supported Automotive Ethernet hardware (such as the RAD-Gigastar, RAD-Galaxy, RAD-Mars, etc).
ICS Recommended
Windows 10 64-bit
8 GB or more system RAM
Intel or AMD 2.2 GHz 4 Core or better processor
1080p (1920x1080) or higher screen resolution
neoVI vehicle network adapters (FIRE 2, ION, RED2, FIRE3, etc), ValueCAN devices (ValueCAN 4 family), or supported Automotive Ethernet hardware (such as the RAD-Gigastar, RAD-Galaxy, RAD-Mars, etc).
Optional PC System Requirement
Audio Card
GPS (Global Positioning System) Unit with NMEA RS232 Interface
PC Joystick
* Some Ethernet features are not supported with this version of Windows, but the software is otherwise compatible ** Windows RT is not supported by Vehicle Spy
Vehicle Network Interface Hardware
Vehicle Spy supports a number of hardware interfaces for vehicle networks designed and manufactured by Intrepid Control Systems, Inc. Each has a high level of integration with Vehicle Spy.

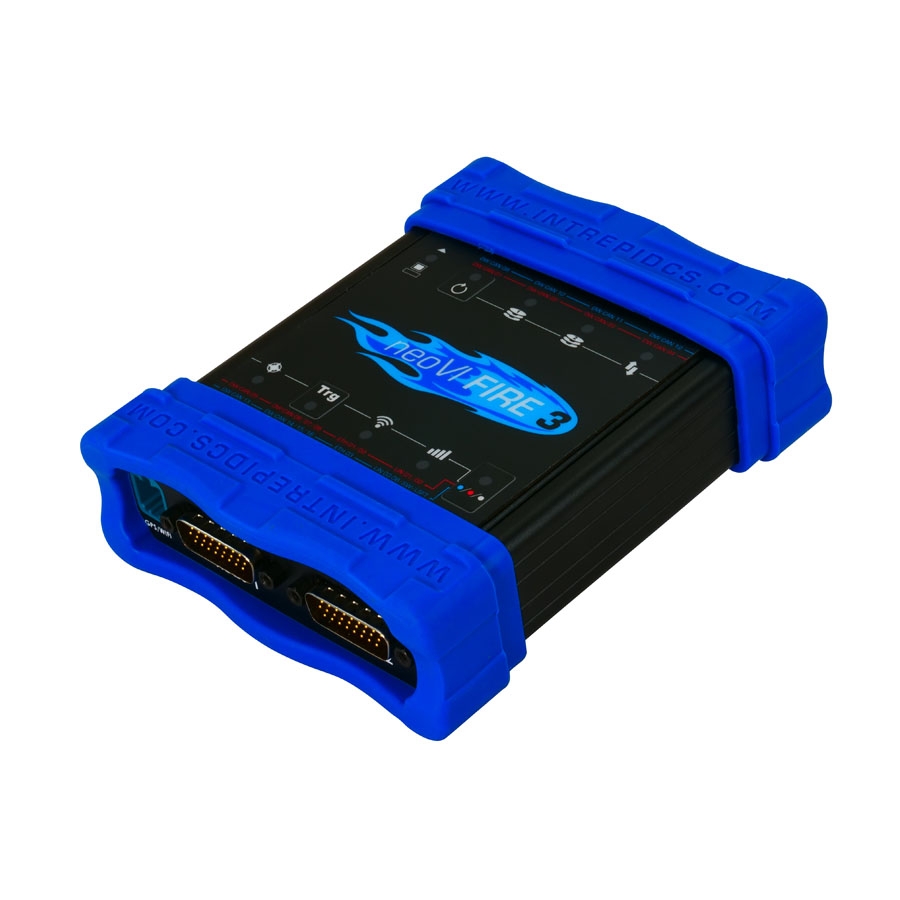

neoVI FIRE 3 Vehicle Interface Recommended for: CAN/CAN FD, GMLAN, ISO9141, OBD-II, LIN, and J1939 More information here: neoVI FIRE3 | |

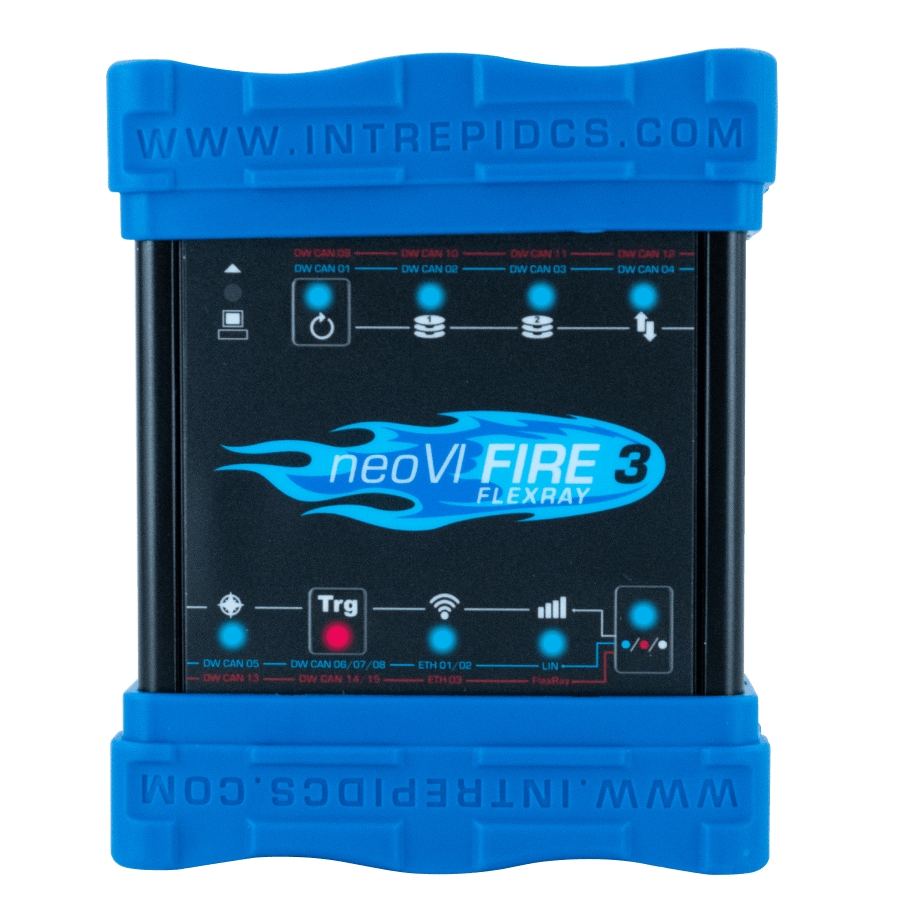

neoVI FIRE 3 FlexRay Vehicle Interface Recommended for: CAN/CAN FD, SWCAN, GMLAN, ISO9141, OBD-II, LIN, and J1939 More information here: neoVI FIRE3 FlexRay | |

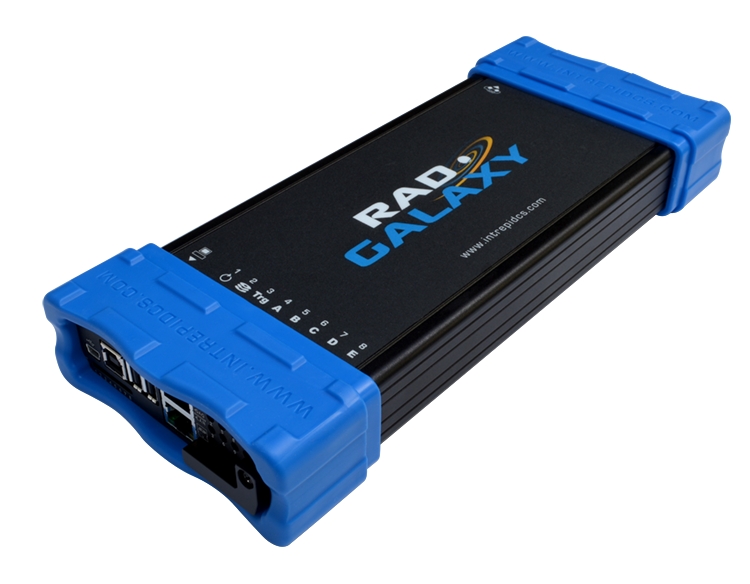

RAD Galaxy Vehicle Interface Recommended for: CAN/CAN FD, J1850, GMLAN, GM Class 2, ISO9141, Ford SCP, OBD-II, J1587, J1708, LIN, and J1939 More information here: RAD Galaxy | |

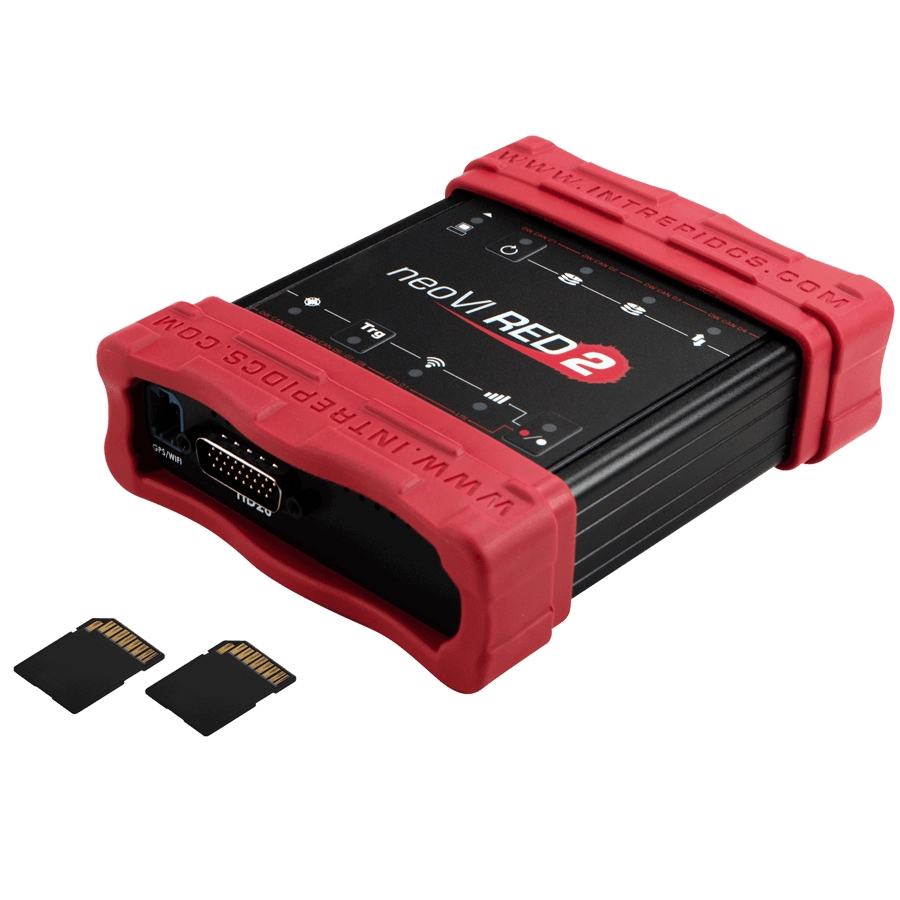

neoVI RED 2 Vehicle Interface Recommended for: DW CAN, ISO9141, LIN, and J1939 More information here: neoVI RED | |

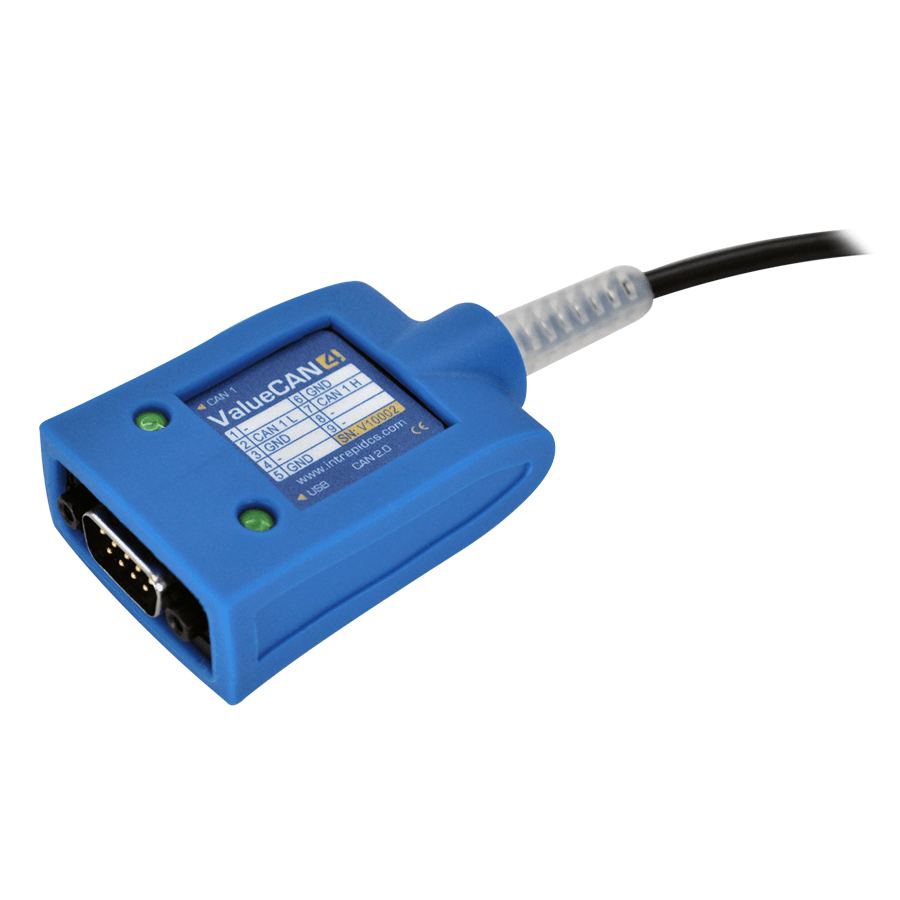

ValueCAN4 Vehicle Interface Recommended for: DW CAN, and J1939 More information here: ValueCAN | |

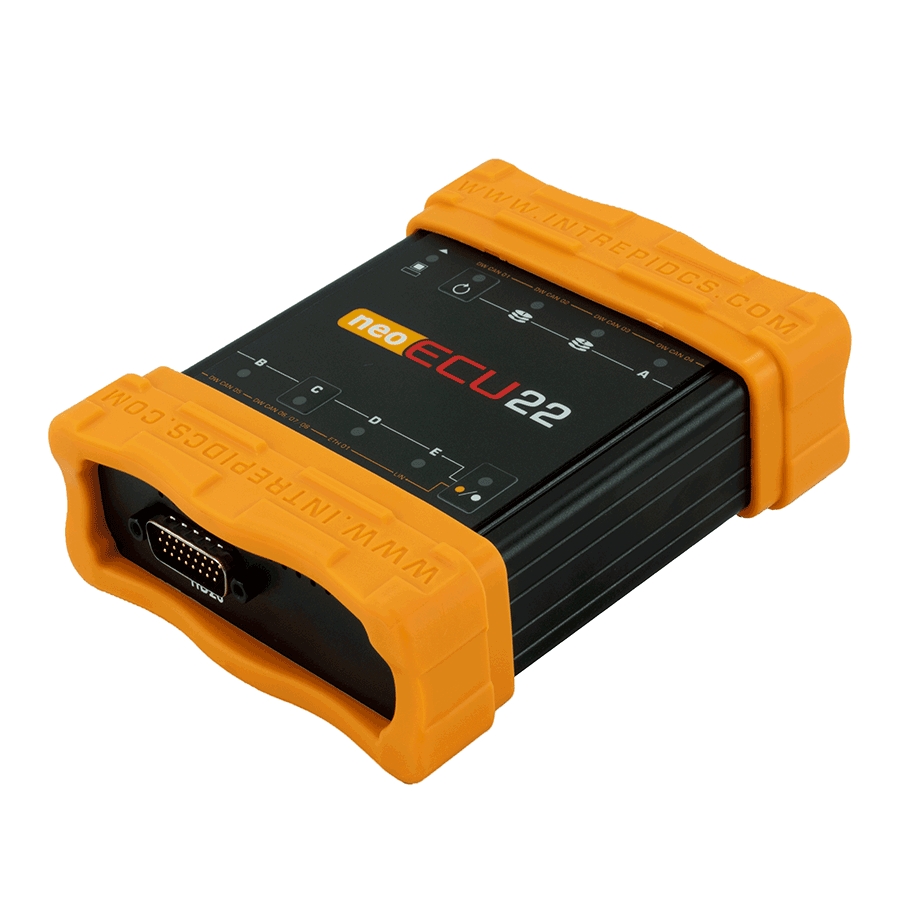

neoECU22 Vehicle Interface Recommended for: CAN/CAN FD, GMLAN, ISO9141, OBD-II, LIN, J1939, MOST, Flexray, and more. More information here: neoECU22 |
